Description

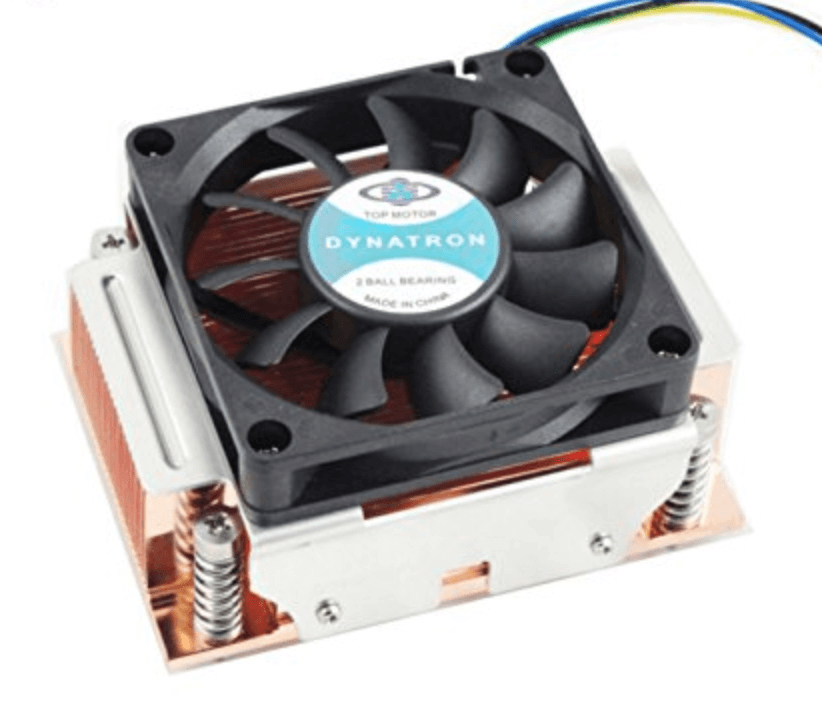

CPU Intel® P4 Socket 478 up to 3.4GHz & Overclo candle wicking & Celeron D 335/330/325/320 For 2U solution Technical Data Overall dimensions 95×74.5×47.5 mm Weight 646 g Heat Sink Material Copper Dimension 95X69X28 mm Fan Dimension 70x70x15 mm Speed at duty cycle 25%: 2000 RPM at duty cycle 50%: 3800 rpm at duty cycle 100%: 6000 rpm; Double Ball Bearing Bearing Rated voltage 12 V power at duty cycle 25%: 0.96 W. At Duty Cycle 50%: 2.4 W at duty cycle 100%: 6.6 Watts Air Flow At Duty Cycle 25%: 16.23 CFM at duty cycle 50%: 32.13 CFM at duty cycle 100%: 49.65 CFM Noise Level At Duty Cycle 25%: 20.23 dBA at duty cycle 50%: 34.39 DBA at duty cycle 100%: 44.88 dBA Air Pressure At Duty Cycle 25%: 0.042 inch H2O at duty cycle 50%: 0.154 inch H2O at duty cycle 100%: 0.378 inch H2O lead wire pin out Pin1/Black (-) pin2 – Yellow (+) PIN3 – Green (techometer/signal output) PIN4 – Blue (PWM)
