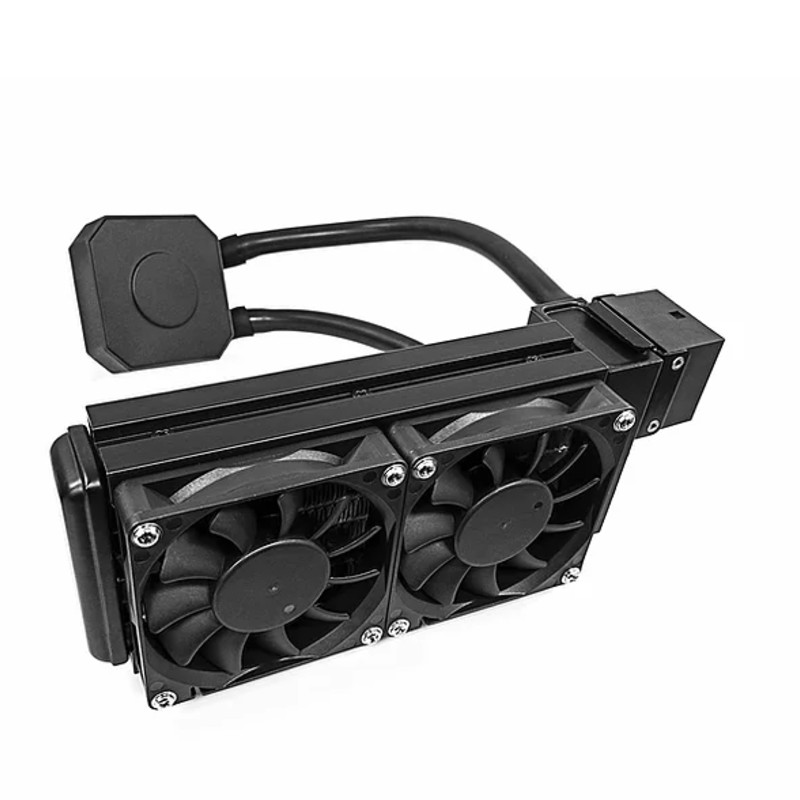

Dynatron L19

£59.00

All-in-one Liquid Cooler for 2U Server, Recommend for Intel Socket LGA 2011 Square and Narrow ILM Mounting, Socket LGA 1365, 1366, 115X, 1200 and AMD® Socket FM2+, FM2, AM3+, AM3, AM2+, AM2, Dual 7cm Cooling Fans with 4-pin PWM Connector, Fully Support CPU Overclocking Powered Heat Dissipation.

Out of stock

Categories: , ,

Description

CPU Support Intel/AMD
CPU Socket Intel Socket LGA1365/1366/115x/2011 Narrow/Square/1200

AMD® Socket FM2+/FM2/AM2/AM2+/AM3/AM3+/FM1
Solution 2U Server
Fan Dimension 70 x 70 x 15 mm
Speed At Duty Cycle 0~20%: 3300±10% RPM
At Duty Cycle 50%: 4500±10% RPM
At Duty Cycle 100%: 6000±10% RPM
Bearing 2 Ball Bearing
Rated Voltage 12V
Power At Duty Cycle 0~ 20%: 1.80 W
At Duty Cycle 50%: 3.24 W
At Duty Cycle 100%: 7.92 W
Noise Level At Duty Cycle 0~ 20%: 31.70 dBA
At Duty Cycle 50%: 38.44 dBA
At Duty Cycle 100%: 46.42 dBA
Air Flow At Duty Cycle 0~ 20%: 27.43 CFM
At Duty Cycle 50%: 37.40 CFM
At Duty Cycle 100%: 54.02 CFM
Air Pressure At Duty Cycle 0~ 20%: 2.95 mm-H2O
At Duty Cycle 50%: 5.49 mm-H2O
At Duty Cycle 100%: 11.45 mm-H2O
Lead Wire Pin Out Pin1- (-)
Pin2- (+)
Pin3- (Tachometer/Signal output)
Pin4- (PWM)
Water Pump Stand-alone Water Pump with Powerful Flow Rate 1.7 Liter Per Minute
Radiator Space Saver Light Weight Radiator
Cold Plate Cold Plate Module with Copper Base
Thermal Grease Shin-Etsu Pre-printed on Base
